Product Overview

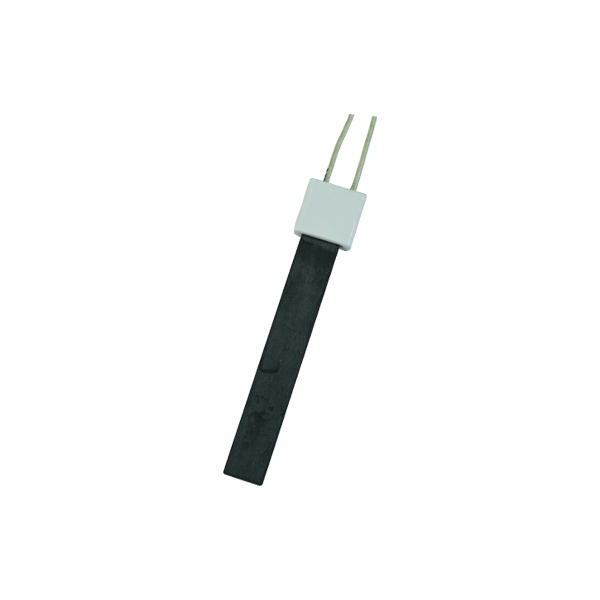

Revolutionize your water heating applications with our advanced Silicon Nitride (Si₃N₄) Heating Elements. Unlike traditional metal heaters that suffer from corrosion and limescale buildup, our ceramic elements utilize the superior properties of high-performance Silicon Nitride.

Designed for both residential and industrial use, these elements offer a unique combination of electrical isolation and high thermal conductivity. They are the ideal choice for applications requiring rapid heating, long service life, and absolute safety, such as instant water heaters, electric boilers, and washing machines.

Key Features & Benefits

100% Scale-Free (Anti-Fouling): The surface of Silicon Nitride is extremely smooth and chemically stable. It effectively repels calcium and magnesium ions, preventing limescale formation. This ensures consistent thermal efficiency (96%+) over the product's lifespan, unlike metal heaters that lose efficiency as scale builds up.
Intrinsic Safety (Dry Burn Protection): The material can withstand temperatures up to 1300°C without melting or degrading. If the heater is accidentally turned on without water, it will not burn out, eliminating a common failure mode of metal elements.
Superior Corrosion Resistance: Highly resistant to acids and alkalis (10x more resistant than stainless steel). It performs exceptionally well in harsh water conditions, including seawater or chemically treated water.
Rapid Heating: High thermal conductivity allows for extremely fast heat-up times (reaching 1000°C in seconds), making it perfect for "tankless" or instant heating systems.
Long Lifespan: With a service life exceeding 10,000 hours, these elements significantly reduce maintenance costs and replacement frequency.

Technical Specifications

Parameter                           Specification
Material                                High-Purity Silicon Nitride (Si₃N₄) Ceramic
Voltage                                12V / 24V (DC) or 110V / 220V / 380V (AC)
Power Rating                    100W – 5000W (Customizable)
Thermal Efficiency         > 96%
Max Operating Temp    1300°C
Insulation Strength        > 2500V (1 min)
Leakage Current            < 0.5mA (Safe for human contact)
Corrosion Rate               < 10g/m².h (in 5% H₂SO₄ boiling solution)

Why Silicon Nitride vs. Metal?

Feature                             Silicon Nitride Ceramic                        Traditional Metal (Stainless/Incoloy)
Limescale                  None (Self-cleaning surface)                   High (Rough surface traps minerals)
Efficiency             Stable (No efficiency loss over time)            Degrades (Scale acts as insulator)
Safety                  High (Dielectric, no electric shock risk)      Medium (Risk of leakage if corroded)
Lifespan                                     10,000+ Hours                                              2,000 - 5,000 Hours
Dry Burning                                 Resistant                                                         Fails quickly

Applications

Our Silicon Nitride elements are versatile and used in a wide range of liquid heating scenarios:
Instant Water Heaters: Electric faucets, shower heads, and tankless water heaters.
Home Appliances: Washing machines, dishwashers, and water dispensers.
Industrial Boilers: Small commercial boilers and steam generators.
Automotive: EV battery coolant heaters and cabin heaters (PTC logic applies).
Medical & Beauty: Steam rooms, saunas, and medical sterilization equipment.
Food & Beverage: Coffee machines and milk heaters.

Customization Options

We provide tailored heating solutions to fit your specific housing and electrical requirements:
Dimensions: Custom lengths, diameters, and flat shapes to fit your flow chamber.
Termination: Screw terminals, high-temp wires (Silicone/Fiberglass), or plug connectors.
Mounting: Flanged, threaded, or press-fit designs.
Sensors: Integration of thermocouples or thermal fuses for over-temperature protection.
