Product Overview

Our Engine Block Heaters are essential preheating devices designed to warm the engine coolant and lubricating oil during periods of inactivity in cold climates. By maintaining the engine block at an optimal temperature, these heaters ensure that fluids remain viscous and flow freely, preventing the "cold start" damage that leads to premature engine wear.

Ideal for diesel trucks, marine vessels, backup generators, and heavy construction equipment, our block heaters guarantee that your machinery starts instantly and reaches full operating power faster, reducing fuel consumption and harmful emissions.

Key Features & Benefits

Instant Starts: Warms the engine block to ensure reliable ignition even in sub-zero temperatures (-20°C to -40°C).
Reduces Engine Wear: Preheating prevents oil from congealing, ensuring immediate lubrication to critical components like bearings and cylinder walls upon startup.
Fuel Efficiency: A warm engine reaches its efficient operating temperature faster, reducing idle time and fuel waste.
Emissions Reduction: Ensures complete combustion from the moment of ignition, significantly lowering hydrocarbon emissions during the warm-up phase.
Durable Construction: Built with corrosion-resistant heating elements (Stainless Steel or Copper) and rugged housings to withstand harsh environments.

Types of Block Heaters

We offer two primary configurations to suit different engine designs:

Type                                                                                                                                                               Description                                                                                                                                Best Application

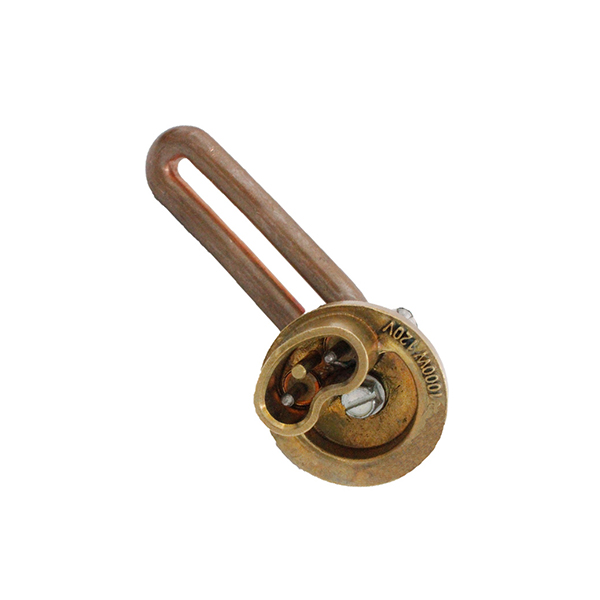

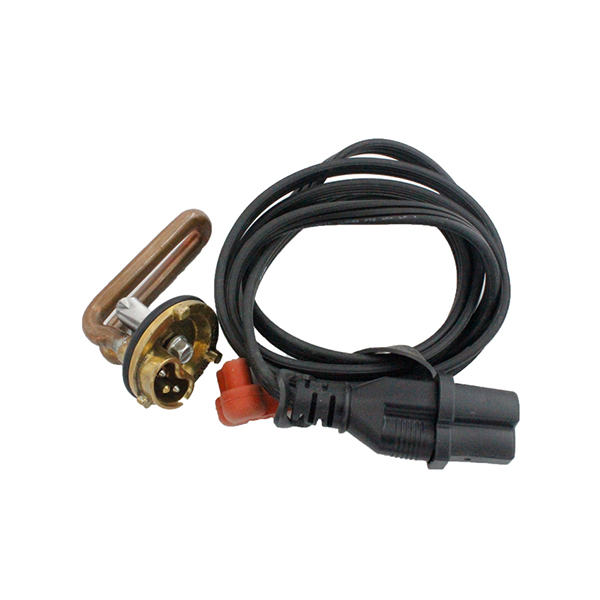

Immersion Heater (Frost Plug)                    Installs directly into the engine block's freeze plug hole, heating the coolant directly.                        Vehicles with accessible freeze plugs (Trucks, SUVs, Cars).
Circulation Heater (In-Line)                  Installed in the heater hose line; uses thermosiphon or a small pump to circulate warm coolant.             Heavy-duty diesel engines, Marine engines, Generators.

Technical Specifications

Parameter                      Specification
Voltage                           120V, 230V, 240V (AC)
Power Rating               400W – 3000W (Select based on engine displacement)
Sheath Material         Stainless Steel 304 / 316 / Copper / Steel
Thread Size                 3/4" NPT / 1" NPT / M27 (Customizable)
Thermostat                Integrated (Auto shut-off at ~40°C) or External
Cord Length              1.2m – 6m (Standard heavy-duty extension cord)
Housing                     Cast Aluminum or PPO Plastic (Weatherproof)

Sizing Guide
Selecting the correct wattage is crucial for efficiency. Use this general guide based on engine displacement:
Small Engines (0–8L): 1000W – 1500W
Medium Engines (8–12L): 1500W – 2000W
Large Engines (12–20L): 2000W – 2500W
Heavy Duty (20L+): 3000W+ (or multiple heaters)

Applications

Automotive & Trucking: Diesel pickup trucks, fleet vehicles, and semi-trucks.
Marine: Inboard boat engines and stern drives.
Power Generation: Standby diesel generators for hospitals and data centers.
Construction & Mining: Excavators, bulldozers, and loaders operating in cold regions.
Agriculture: Tractors and harvesters.

Installation & Safety

Orientation: Ensure the heater is installed below the coolant level. For circulation heaters, follow the flow direction arrow.
Thermostat Protection: Most modern heaters include an internal thermostat that cuts power once the coolant reaches approx. 40°C to prevent overheating and save energy.
Dry Fire Protection: Ensure the cooling system is full of fluid before powering on to prevent element burnout.

Why Choose Our Block Heaters?

Universal Fit: Available with various thread sizes and flange patterns to fit major engine brands.
Energy Efficient: Integrated thermostats ensure the heater only draws power when necessary.
Safety Certified: Built to meet international electrical safety standards.
