Product Overview

Our Tubular Igniters represent the pinnacle of rugged ignition technology. Constructed with a seamless metal sheath (tubular design), these heating elements are engineered to withstand harsh environments where fragility is a concern. Unlike solid rod igniters, the tubular design allows for optimized watt density and rapid heat transfer, while the metal casing provides superior protection against physical impact and corrosion.

These igniters are the standard solution for heavy-duty biomass boilers, industrial burners, and commercial pellet stoves, offering a perfect balance of durability, thermal efficiency, and cost-effectiveness.

Key Features & Benefits

Tubular Metal Construction: Encased in a high-grade stainless steel or Incoloy tube, providing excellent resistance to mechanical shock, vibration, and abrasion.
Optimized Heat Transfer: The tubular geometry ensures efficient heat distribution, allowing the element to glow red-hot rapidly and ignite fuel reliably.
Corrosion Resistant: The metal sheath acts as a barrier against acidic condensates and flue gases, significantly extending the lifespan of the component in corrosive environments.

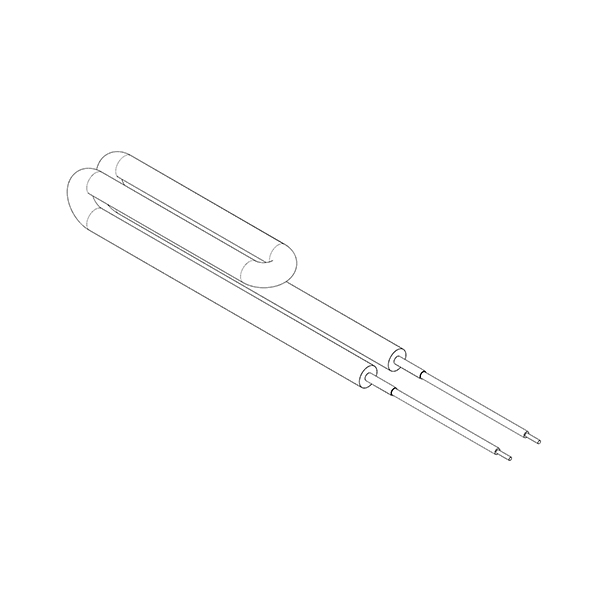

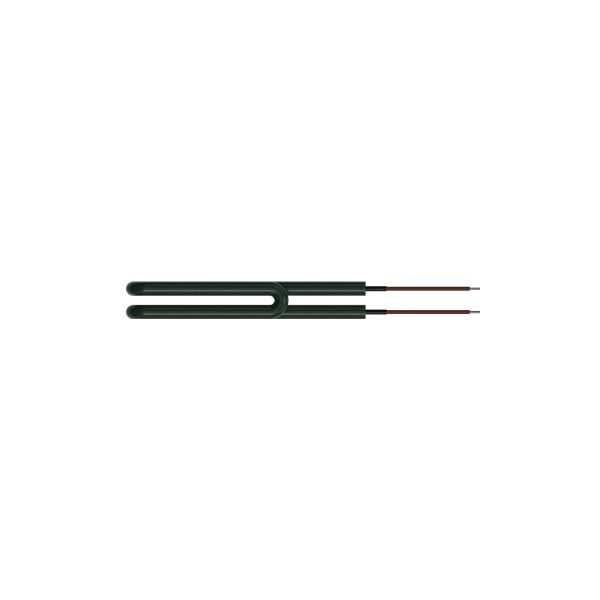

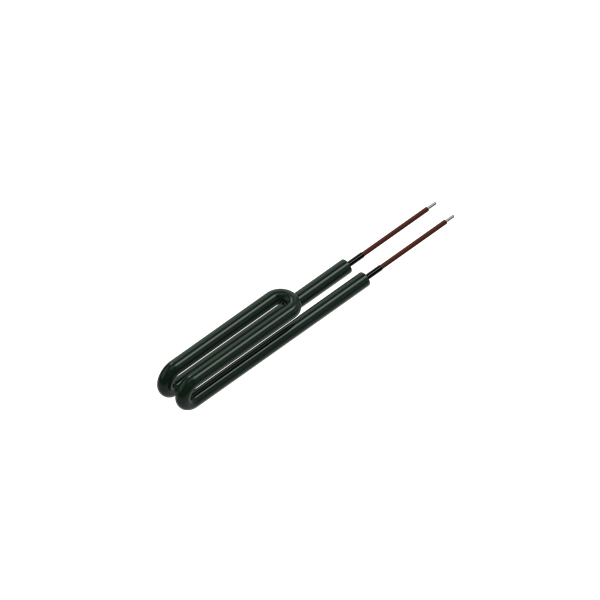

Customizable Geometry: The tubular design is highly adaptable. We can manufacture these igniters in straight, U-shaped, W-shaped, or custom bent configurations to fit specific combustion chambers.
High Wattage Capacity: Capable of handling higher power loads (Watts) relative to their size, making them ideal for large-scale ignition tasks.

Applications

Tubular igniters are versatile and widely used in:

Application                            Role of the Tubular Igniter
Biomass Boilers                  Reliable ignition for large volume combustion chambers.
Industrial Burners             Withstands the vibration and high airflow of industrial systems.
Commercial Stoves         Durable solution for high-usage heating appliances.
Coffee Roasters                Provides consistent heat for roasting drum ignition.
Hot Air Generators         Ensures rapid startup for large air heating units.

Technical Specifications

Parameter                                                                      Specification
Sheath Material                                  Stainless Steel 304/ 316/ 310S/ Incoloy 840/ Incoloy 800
Tube Diameter                                    6.8mm, 8mm, 10mm, 12mm (Customizable)
Operating Temperature                 Surface temp up to 850°C (Red Hot)
Power Rating                                      200W – 1100W+ (Customizable based on size)
Voltage                                                 120V, 230V, 400V (Single or Three Phase)
Insulation                                           High-purity Magnesium Oxide (MgO) compacted inside tube
Connection                                       Threaded studs, flat terminals, or lead wires

Engineering & Customization

We understand that every combustion chamber is unique. Our tubular igniters can be fully customized to meet your engineering requirements:
Bending: Precise bending to match your burner geometry.
Flanges: Welded flanges for easy mounting and sealing.
Coatings: Optional surface coatings to further enhance corrosion resistance in extreme chemical environments.

Why Choose Our Tubular Igniters?

Unmatched Durability: The tubular metal sheath is virtually unbreakable during installation and operation.
Consistent Performance: High-quality MgO insulation ensures stable electrical resistance and consistent heating over thousands of cycles.
Global Standards: Manufactured to meet international safety and quality standards (CE, RoHS, ISO).
